Torsion Apparatus Vertical

The Torsion Apparatus Vertical is a high-precision instrument designed to study torsional motion, rigidity modulus, and elastic behavior of different wires. Ideal for school, college, and research laboratories, this apparatus helps students clearly understand the relationship between applied torque and resulting angular displacement. Built with durable materials and a stable vertical stand, it ensures long-lasting performance and accurate experimental results.

This apparatus typically includes a solid base, adjustable scale, chuck for holding wires, and a circular disc to measure deflection. Its user-friendly design allows educators and learners to perform experiments with ease while maintaining high accuracy. Students can determine the modulus of rigidity of metal wires, observe torsional oscillations, and understand elastic limits through hands-on experimentation.

Product Information

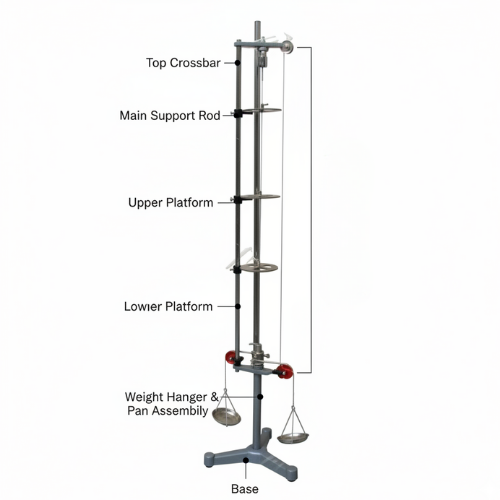

Three pointers for clamping to the test rod are provided. Strings to apply the deflecting couple and having pans at their free and pass over bearing pulleys which are clamped to the uprights without weights.It consists of a heavy mild steel frame mounted on a heavy trileg cast iron base. Upper end of the rod 900 mm length and 5 mm dia under test is clamped by a 3-jaw chuck and the lower end is clamped, into the axis of a torsion couple three metal circular scales graduated in single degrees which are free to slide on one of the graduated rod can be clamped at any position.

Features:-

• Precision Measurement of Torsional Motion
  Designed for accurate study of torsional oscillations, shear modulus, rigidity modulus, and elastic behavior of materials.
• High-Quality Vertical Stand
  Robust vertical frame made from durable metal/steel ensuring stability and vibration-free operation during experiments.
• Adjustable Torsion Wire System
  Comes with replaceable and adjustable torsion wires for studying different materials and thicknesses as per experiment needs.
• Smooth Rotating Head & Clamp
  Offers friction-free rotation with a strong clamping mechanism to hold specimens firmly for consistent test results.
• Graduated Scale for Easy Reading
  Clear, easy-to-read angular scale allows precise measurement of twist angles and oscillation movements.
