Steam Boiler with Water Gauge
The Steam Boiler with Water Gauge is a highly efficient educational apparatus designed for laboratory demonstrations and experiments related to thermodynamics, heat transfer, and the study of steam generation. This unit helps students and researchers understand the principles of water-to-steam conversion, pressure buildup, and boiler operations in a safe and controlled environment.

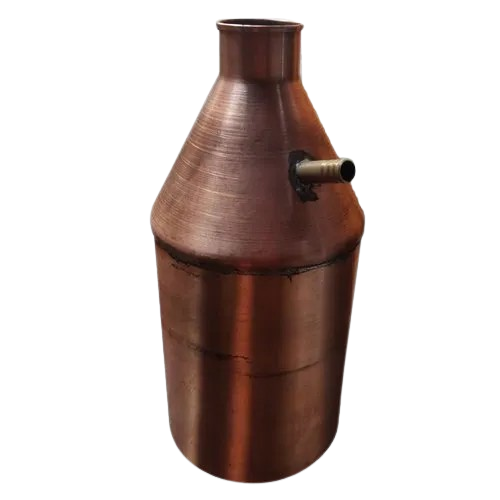

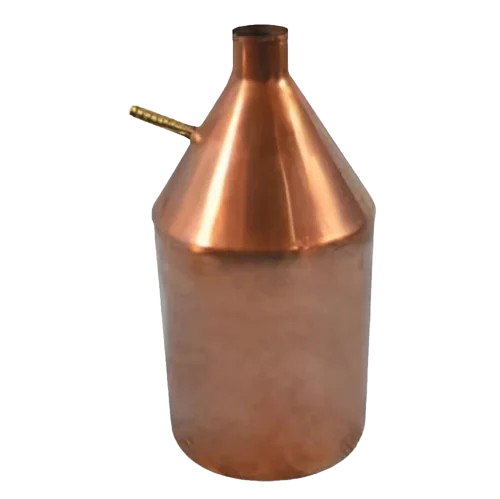

A copper vessel having a cylindrical body & a conical top with a short neck for a bung. Fitted with a finger loop handle, steam outlet tube riffled for rubber tubing, & a glass water gauge tube.
Cylindrical 280 x 115 mm (overall Ht x dia), cap 1.5 litre, neck 23mm (I.D.) with riffled side tube 9.5 mm max o.d. and with water gauge.
Features:-
- Durable Construction: Made from high-quality stainless steel or brass for long-lasting performance and resistance to heat and pressure.
- Water Gauge Attachment: Equipped with a transparent water level indicator to observe and measure water levels inside the boiler accurately.
- Safety Features: Fitted with safety valve and steam outlet for secure operation.
- Efficient Heating: Compatible with spirit burners, gas burners, or electric heating for quick and uniform steam generation.
- Observation-Friendly Design: Clear water gauge allows real-time monitoring of boiling and steam production.
- Capacity Options: Available in different capacities (small, medium, or large) as per laboratory requirements.
