Dip Circle

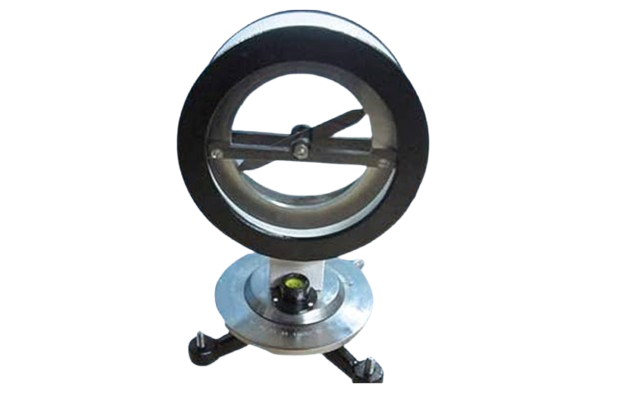

A dip circle is a magnetic compass with the needle moving in a vertical plane to indicate the inclination of the Earth’s magnetic field to the horizontal – the so-called angle of dip. The angle of dip in Brisbane is about 45 degrees. The device has a brass baseplate with a bubble level and adjusting screws.
Product Information:-

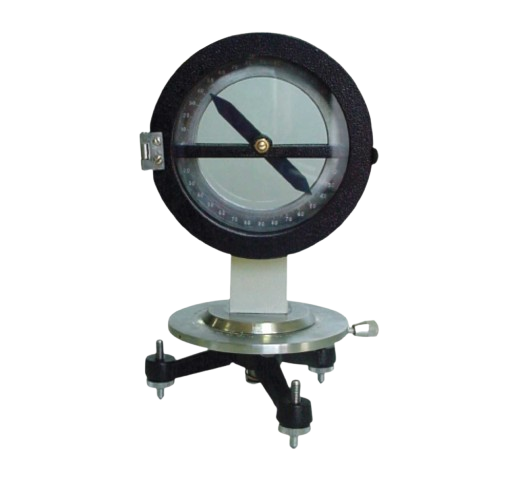

Dip Circle for Physics Lab with steel needle 10cm long on jeweled bearings, with circular metal scale, 13cm dia. and anti parallax mirror, both rotatable about vertical axis. Aluminium base 15cm dia. marked at four quadrants. Complete with extra needle dimensionally identical to first but un-magnetized.
Dip Circle:-
Dip Circle, also known as a Dip Needle or Inclinometer, is a precision scientific instrument used in physics and earth science laboratories to measure the angle of magnetic dip or inclination—the angle between the Earth’s magnetic field and the horizontal plane. This tool is invaluable in the study of terrestrial magnetism and is commonly used in geophysics and educational demonstrations.
Features:-
- High-Quality Needle: Mounted on a low-friction pivot to ensure accurate and sensitive movement.
- Calibrated Circular Scale: Clearly graduated in degrees for precise angle readings.
- Adjustable Horizontal and Vertical Plane: Allows alignment with the Earth’s magnetic meridian.
- Robust Construction: Typically made from durable metal with a stable base for secure setup.
- Protective Casing: Included for safe storage and transport.
Applications:-
- Measurement of magnetic inclination (dip) at a given location.
- Educational demonstrations in physics and earth science classes.
- Research and survey work in geomagnetism and geology.
